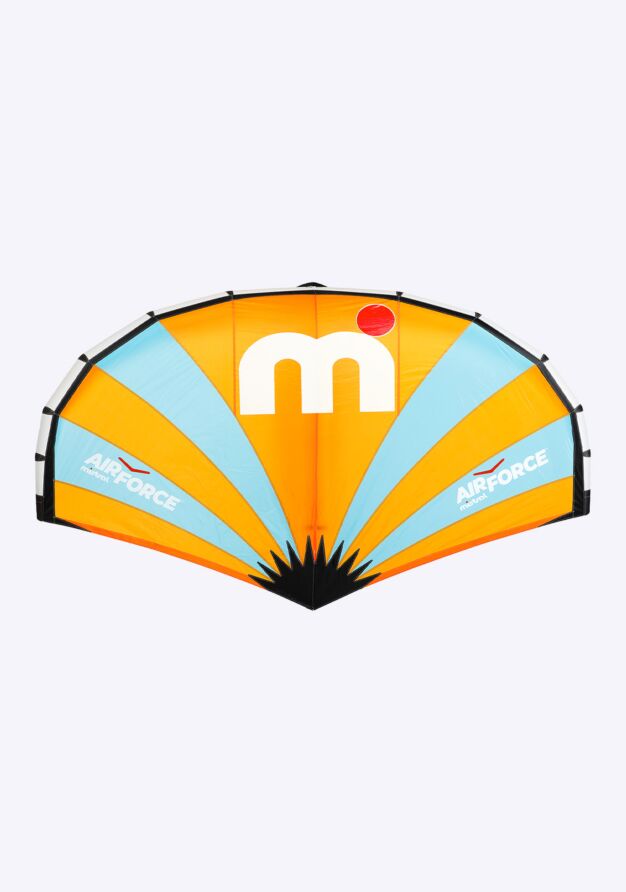

Sphinx Wing Sail 5.0M
- Verzend- en leveringsinformatie
- Klantenboordeling: 9.2
- 30 dagen 'niet goed, geldterug'-garantie
- Op werkdagen voor 20:00u besteld, morgen in huis
Omschrijving
You can feel the added stability as the canopy holds shape in higher wind gusts providing added responsiveness. The Sphinx wing represent the best in design concept and performance, that’s better by design. For all levels of rider looking for the highest levels of performance and control.
SPECIFICATIONS and FEATURES
Most wings, run panels horizontal and parallel to the central strut resulting in opposing torsional forces forming stress creases diagonally in opposing angles to the panels. Studying spinnaker sails, it was concluded a radial cut wing would be the logical option, so as the forces radiate outward from the rear to the leading edges, spreading the load in sync with the canopy spinnaker cloth in a more uniform direction. The result is improved canopy rigidity. Ideally suited to entry level to upper intermediate riders, offering universal appeal and all-round capabilities.
Recommended wind strengths for average weight rider(75-85kg):
3m.5 25-40 knots, 4.2m 13-27 knots, 5m 11-24 knots 7psi, 6.5m 8-20 knots
- Vastly improved wing rigidity
- Wide wind range of use
- Innovative radial cut panelling
- Simple 3 handle wide grip webbing
- Windowless for improved aerodynamics
- Dual valve system
- Highly responsive
- High visibility
- Harness line fix points
- Efficient on all points of sail
- 3.3 m for high winds, wave riding
- 4.2 m for wide wind range and disciplines
- 5.0 m the ‘must’ have work horse
- 6.5 m light winder and heavier riders
- 6.5 m includes GRP mini-battens
- Wrist leash included
- Spinnaker cloth back pack
PRODUCT COMPOSITION and CONSTRUCTION
Canopy non absorbent Polyester (Dacron) sailcloth. Inflatable leading edge and central strut, 175gm Dacron and nylon stitching.
STOCK ADVICE
Avoid storing in direct high UV sunlight to prolong material longevity. Rinse with fresh water to evacuate all salt crystals. When dry, store in dry, well ventilated place avoid humid heat sources.
Included Equipment
| Leash | Wrist leash |
|---|---|
| Bag | Spinnaker cloth back pack |
Eigenschappen
| Valve | Dual valve system, 1 x strut, 1 x leading edge |
|---|---|
| Front Wing Specs | 175oz Dacron leading edge |
| Fuselage Specs | 175oz Dacron strut, includes leash attachment point |
| Base Material | Zero porosity, lightweight nylon spinnaker cloth |
| Handle Design | Canvas |
Rider
| Rider level | Starter, Gevorderd, Ervaren |
|---|
Materials, Care & Storage
| Material Description | The canopy is constructed from lightweight polyester Dacron® sailcloth. The leading edge and strut use heavy-duty 175 Dacron. Polyester threads are used to stitch the panels. |
|---|---|
| Care | Do not over inflate. Follow the information printed on the wing. 6-7 psi is a sufficient pressure range with a maximum of 8 psi. Do not over-inflate, as there is a risk of tearing the stitching or stressing the bladder. Rinse and air dry after use before deflating and stowing. Minor tears can be repaired using rip stop repair tape. |
| Storage | Before extended storage, rinse with fresh water and air dry. Deflate fully and replace the valve cap. Lay flat and roll both wing tips inwards towards the centre strut neatly and securely. Fold the trailing strut end towards the centre to form a neat compact stowage package and store it in the bag supplied. If you have to stuff and force into bag void, refold until it fits without force. Avoid storing next to a heat source, radiators etc. Alternatively, store it deflated and suspended over a long rod parallel to the strut. Store indoors. |
Attributen
| Activities | Wingen |
|---|---|
| Color | Oranje |
Sphinx Wing Sail 5.0M
